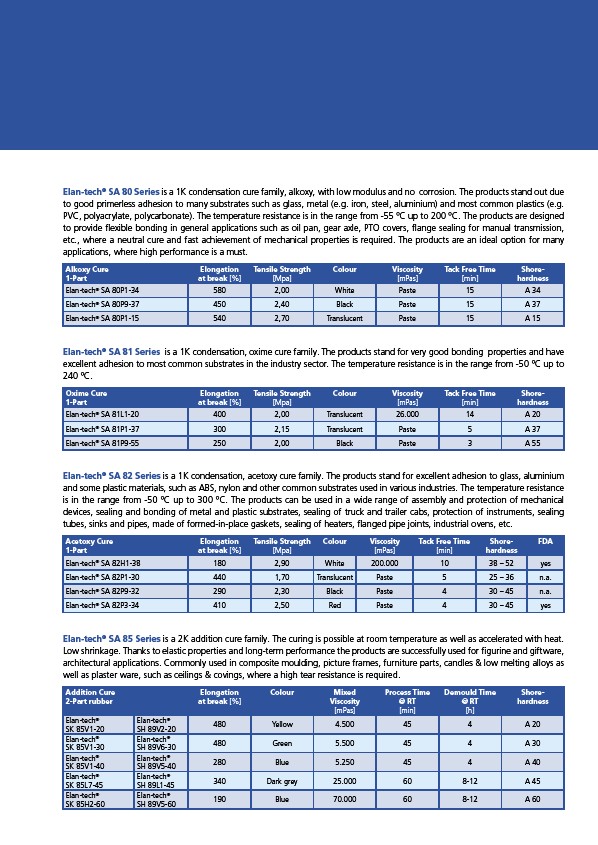

Elan-tech® SA 80 Series is a 1K condensation cure family, alkoxy, with low modulus and no corrosion. The products stand out due
to good primerless adhesion to many substrates such as glass, metal (e.g. iron, steel, aluminium) and most common plastics (e.g.
PVC, polyacrylate, polycarbonate). The temperature resistance is in the range from -55 °C up to 200 °C. The products are designed
to provide flexible bonding in general applications such as oil pan, gear axle, PTO covers, flange sealing for manual transmission,
etc., where a neutral cure and fast achievement of mechanical properties is required. The products are an ideal option for many
applications, where high performance is a must.
Alkoxy Cure
Elongation
Tensile Strength
Colour Viscosity
Tack Free Time
Shore-
1-Part
at break %
Mpa
mPas
min
hardness
Elan-tech® SA 80P1-34 580 2,00 White Paste 15 A 34
Elan-tech® SA 80P9-37 450 2,40 Black Paste 15 A 37
Elan-tech® SA 80P1-15 540 2,70 Translucent Paste 15 A 15
Elan-tech® SA 81 Series is a 1K condensation, oxime cure family. The products stand for very good bonding properties and have
excellent adhesion to most common substrates in the industry sector. The temperature resistance is in the range from -50 °C up to
240 °C.
Oxime Cure
Elongation
Tensile Strength
Colour Viscosity
Tack Free Time
Shore-
1-Part
at break %
Mpa
mPas
min
hardness
Elan-tech® SA 81L1-20 400 2,00 Translucent 26.000 14 A 20
Elan-tech® SA 81P1-37 300 2,15 Translucent Paste 5 A 37
Elan-tech® SA 81P9-55 250 2,00 Black Paste 3 A 55
Elan-tech® SA 82 Series is a 1K condensation, acetoxy cure family. The products stand for excellent adhesion to glass, aluminium
and some plastic materials, such as ABS, nylon and other common substrates used in various industries. The temperature resistance
is in the range from -50 °C up to 300 °C. The products can be used in a wide range of assembly and protection of mechanical
devices, sealing and bonding of metal and plastic substrates, sealing of truck and trailer cabs, protection of instruments, sealing
tubes, sinks and pipes, made of formed-in-place gaskets, sealing of heaters, flanged pipe joints, industrial ovens, etc.
Acetoxy Cure
Elongation
Tensile Strength
Colour Viscosity
Tack Free Time
Shore-
FDA
1-Part
at break %
Mpa
mPas
min
hardness
Elan-tech® SA 82H1-38 180 2,90 White 200.000 10 38 – 52 yes
Elan-tech® SA 82P1-30 440 1,70 Translucent Paste 5 25 – 36 n.a.
Elan-tech® SA 82P9-32 290 2,30 Black Paste 4 30 – 45 n.a.
Elan-tech® SA 82P3-34 410 2,50 Red Paste 4 30 – 45 yes
Elan-tech® SA 85 Series is a 2K addition cure family. The curing is possible at room temperature as well as accelerated with heat.
Low shrinkage. Thanks to elastic properties and long-term performance the products are successfully used for figurine and giftware,
architectural applications. Commonly used in composite moulding, picture frames, furniture parts, candles & low melting alloys as
well as plaster ware, such as ceilings & covings, where a high tear resistance is required.
Addition Cure
Elongation
Colour Mixed
2-Part rubber
at break %
Viscosity
mPas
Process Time
@ RT
min
Demould Time
@ RT
h
Shore-
hardness
Elan-tech®
SK 85V1-20
Elan-tech®
SH 89V2-20 480 Yellow 4.500 45 4 A 20
Elan-tech®
SK 85V1-30
Elan-tech®
SH 89V6-30 480 Green 5.500 45 4 A 30
Elan-tech®
SK 85V1-40
Elan-tech®
SH 89V5-40 280 Blue 5.250 45 4 A 40
Elan-tech®
SK 85L7-45
Elan-tech®
SH 89L1-45 340 Dark grey 25.000 60 8-12 A 45
Elan-tech®
SK 85H2-60
Elan-tech®
SH 89V5-60 190 Blue 70.000 60 8-12 A 60
